Description

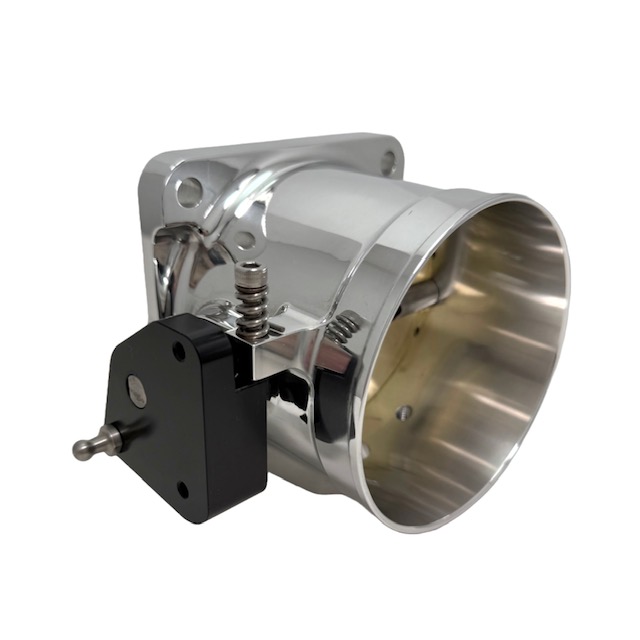

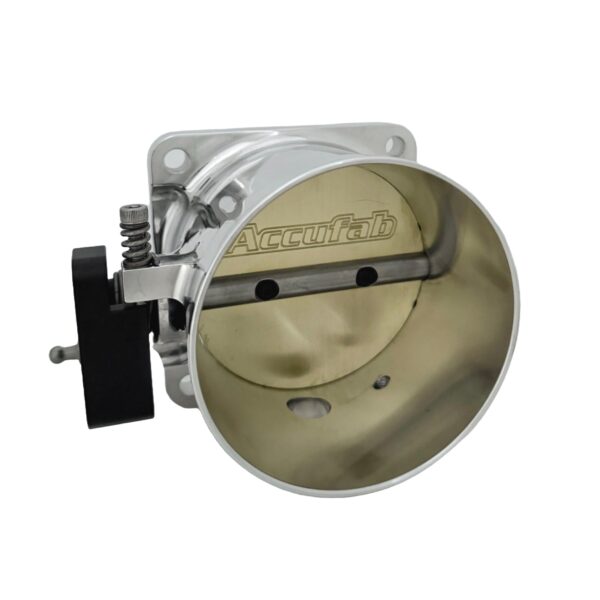

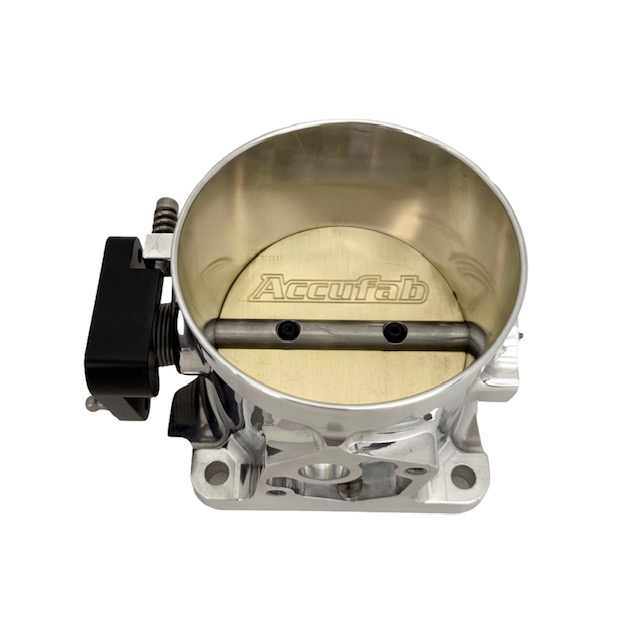

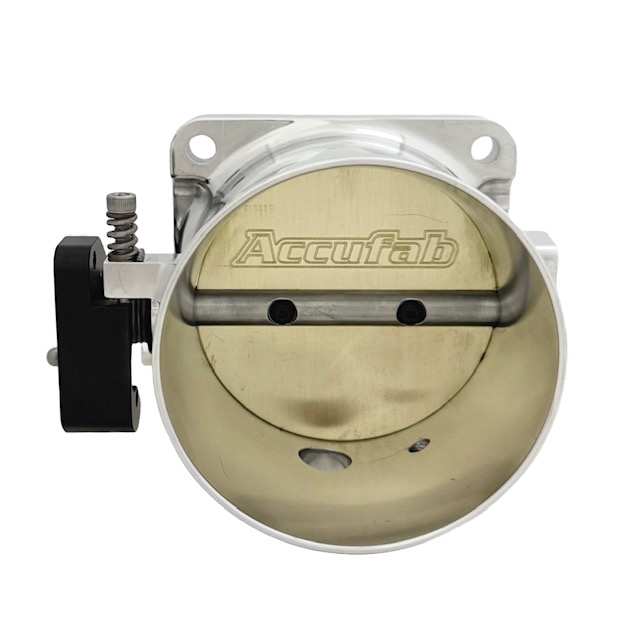

The 90mm features a full body stainless steel shaft, brass blade, IAC & TPS provisions, 3 threaded options on the aluminum black anodized linkage to accommodate different ball stud positions, an o-ring groove on the back, plus, it’s shaft is sealed and air leak resistant up to 100 psi. Also, the 90mm is measured at the blade, not the inlet. The 90mm requires 4″ tubing.
Our 90mm throttle body is available Polished or Black anodized.
FAQ: Does an Accufab F90 have an IAC provision? Yes. A few years ago we eliminated the IAC provision but now all versions have the IAC provision which can be blocked off with part number IACBO or IACBOBK if needed.
IMPORTANT: Pictures are a representation of the product. Actual product may differ. All 90mm throttle bodies have provision for the IAC motor.
Better Air Flow for More Power: This 90mm upgrade will improve your Mustangs throttle response and horsepower. It’s the perfect starting point for future modifications. In addition, spacers are offered as an option in combination with our throttle body.
Exceptional Quality: Accufab’s quality is second to none! This throttle body is CNC machined from 6061-T6 billet aluminum and the exterior is polished to an eye-catching finish or anodized black. The shafts are also CNC machined from stainless for durability and quality, with brass blades and the highest quality bushings, bearings and screws. Manufactured in the USA.
Application: This Accufab 90mm throttle body is designed for use on a Ford 5.0L Mustang 1986-1993.
Technical Notes: Idle speed should only be set by adjusting the throttle position sensor. DO NOT adjust any screws on the throttle body. These screws are pre-set at Accufab.

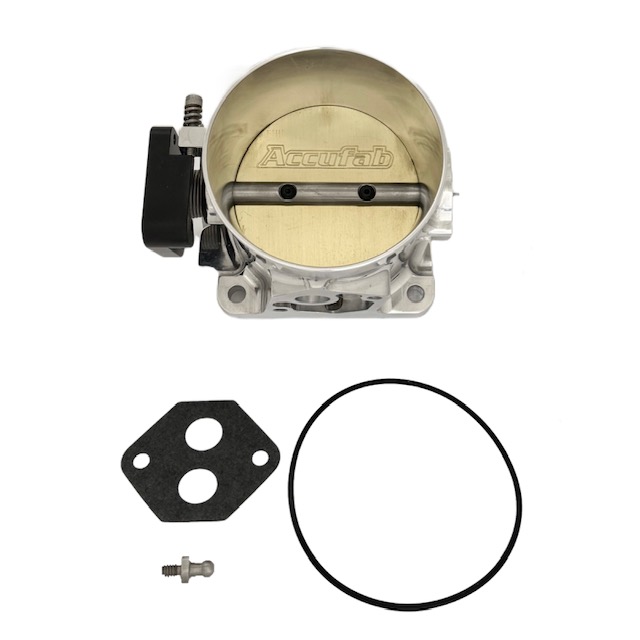

- Accessories Included: Part number F90 includes a throttle body o-ring and 1/4″ 10-24 threaded ball stud, plus the IAC gasket. No mounting hardware available. Part number F90K includes the throttle body, 2″ blank spacer, base o-ring, ball stud, 90mm gasket and IAC gasket.
Accufab has several optional accessories to help adapt an Accufab 5.0L Ford style throttle body to be used with a GM TPS instead of a Ford, part number TPSGM. We also manufacture an IAC adapter to use early or late style GM IAC on a Ford throttle body.
CLICK HERE > Mustang 5.0L Throttle Body Guide
Throttle Body Dimensions. Bolt and Thread Info > CLICK HERE
CLICK HERE > CFM Air Flow – Throttle Bodies
Disclaimer
Our products have been designed for off road/racing applications only. These products are not legal for use in the state of California on any pollution/control motor vehicle. These performance products are legal in California only on a racing vehicle which may never be used or driven on a public highway.
CA WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov
